Otava 2.5-7.5 GHz Tunable Filter

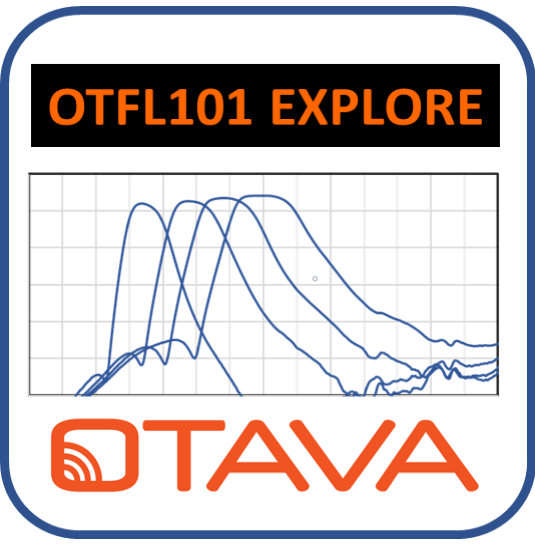

MATLAB EXPLORER APP
OTFL101
Click Here for More Information at Avnet
OTFL101 Evaluation Board
Click Here for More Information at Avnet
Click Here to Download at Mathworks
Description
The OTFL101 is a digitally tunable bandpass filter. The wide range of control provides flexibility of frequency tuning from 2.5 to 7.5 GHz, with an IBW up to 1.5 GHz. The typical insertion loss is 7 dB. Otava Ultra Linear Tunable Filters provide solutions for systems that need to remove spurs or unwanted signals/interferences and replace switched filter banks. Application areas include but not limited, radio, communication, military radar, automotive, and instrumentation.
The Otava OTFL101’s features include:
2.5 GHz to 7.5 GHz
Digitally Tunable
Up to 1.5 GHz of Instantaneous Bandwidth (IBW)
In Band IIP3: > 40 dBm
Power Supplies: +1.8 V, +2.5 V
SOI Technology
Single Chip Replacement for Discrete Filter Banks
Flip Chip C4 Bump
Die Dimension: 2.34 mm x 1.634 mm
